A drone engine inspired by the Lyra-8

undisclosed Imported automatically; the author has not disclosed AI use yet

install

In maiden's REPL (the >> prompt at the bottom of the editor), run:

;install https://github.com/spgarbet/Ygg

Or add the splines catalog to maiden and install it from the project manager. Restart norns if the script ships a new engine.

readme from spgarbet/ygg

Ygg Drone Synthesizer Engine

A Lyra-8 inspired drone synthesizer for SuperCollider and Norns, designed for MPE controllers and evolving spectral harmonies.

Jörmungandr Demo seed: 42, B locrian, 10s.

Discussion

Overview

;install https://github.com/spgarbet/Ygg

Ygg is an 8-voice polyphonic drone synthesizer with:

  • Voice stealing from oldest voice (ring buffer allocation), with hold after release.
  • MPE support (pitch bend and pressure per note)
  • Cross-modulation matrix with 4 routing modes and local voice overrides.
  • Harmonics morphing (sine → square → saw)
  • Leslie-style vibrato for stereo expansion
  • Hold mode for sustained drones
  • 2-tap modulated delay
  • Tube-style distortion It goes to 11!
  • Global LFO with 4 modes

Architecture

Screens

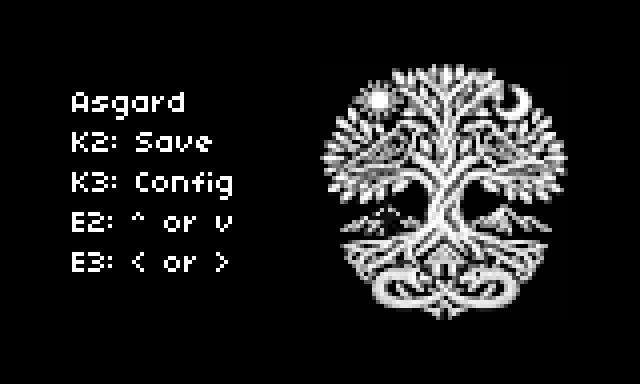

On the main screen you will see the Yggdrasil and it has 8 points that can be navigated on the tree that are patches. K2 normally navigates pages left and K3 forward. The E2 and E3 encoders navigate the tree of patches.

The screens to the right are configuration screens. E2 changes the selection of the parameter and E3 changes it's value.

The final screen to the right is the demo, and K3 here starts and stops the demoo.

The screen to the left of the main Ygg screen is the MPE settings. These are global and not saved per patch but affect all patches. Hitting K2 again on this screen saves the state of everything.

Signal Flow

8 Voices (to individual buses) → Voice Mixer (sum to stereo) → Delay → Distortion → Main Out
                                      ↓
                                 Cross-Modulation (feedback)
                                      ↑          ↑
                                  Global LFO  Main Out

Voice Parameters (per voice)

  • freq - Base frequency in Hz
  • amp - Amplitude (0-1)
  • attack - Attack time in seconds
  • release - Release time in seconds
  • hold - Hold depth (0-1)
  • vibrato_freq - Vibrato rate in Hz (0 = mono, >0 = stereo)
  • vibrato_depth - Depth of Vibrato(0, 1)
  • harmonics - Waveform morph (0=sine, 0.5=square, 1.0=saw)
  • pitch_bend - MPE pitch bend in semitones
  • pressure - MPE pressure (0-1, scales amplitude)
  • voice_mod_source - Modulation source
    • Cross Modulation Voice: 1
    • LFO: 2
    • Pre Delay: 3
    • Line Out: 4

Global Parameters

Cross-Modulation
  • attack (0-20) Attack time
  • release (0-20) Release time
  • hold (0-1) Hold level (a note going over this amp can't fall below it)
  • vibrato_depth (0-0.1)
  • mod_depth (0-1)
  • routing
    • Self (1): 1 ↔ 2, 3 ↔ 4, 5 ↔ 6, 7 ↔ 8,
    • Neighbor (2): 1-2 ↔ 3-4, 5-6 ↔ 7-8
    • Cross (3): 1-2 ↔ 5-6, 3-4 ↔ 7-8
    • Loop (4): 1-2 → 3-4 → 5-6 → 7-8 → 1-2

LFO Modes

  • lfo_freq_a
  • lfo_freq_b
  • lfo_style
    • Single (1): Use freqA only
    • Sum (2): freqA + freqB
    • Product (3): freqA × freqB
    • Slewed (4): Soft slewing
    • FM (5): Frequency modulation

Delay Parameters

  • delay_time_1, ygg_delay_time_2 - Delay taps times (0-2 seconds)
  • delay_mod_1, ygg_delay_mod_2 - Two taps modulation depth
  • delay_fb - Feedback amount (0-1)
  • delay_mix - Dry/wet mix (0-1)
  • delay_mod_type - 1: Normal, 2: Gated (Square Wave) LFO

Distortion Parameters

  • dist_drive - Drive amount (1-11)
  • dist_mix - Dry/wet mix (0-1)

Voice Parameters

  • vib_n - Vibrato frequency (0-20)
  • mod_src_n -
    • Voice (1): Use cross modulation voice
    • LFO (2): Use LFO output
    • pre Delay (3): Use pre delay output
    • Line Out (4): Use final line out

AI Disclosure

Claude.ai was used in the construction of this. However, the design was cleanroomed and completely human generated. Claude generated framework code, but did not assist in the formulation of ideas or design.
