3 buttons, 3 encoders and a screen for RPI 3 (+ audio expansion board)

undisclosed Imported automatically; the author has not disclosed AI use yet ♥ like

install

In maiden's REPL (the >> prompt at the bottom of the editor), run:

;install https://github.com/nordseele/nordhat

Or add the splines catalog to maiden and install it from the project manager. Restart norns if the script ships a new engine.

readme from nordseele/nordhat

Nordhat & audio expansion board

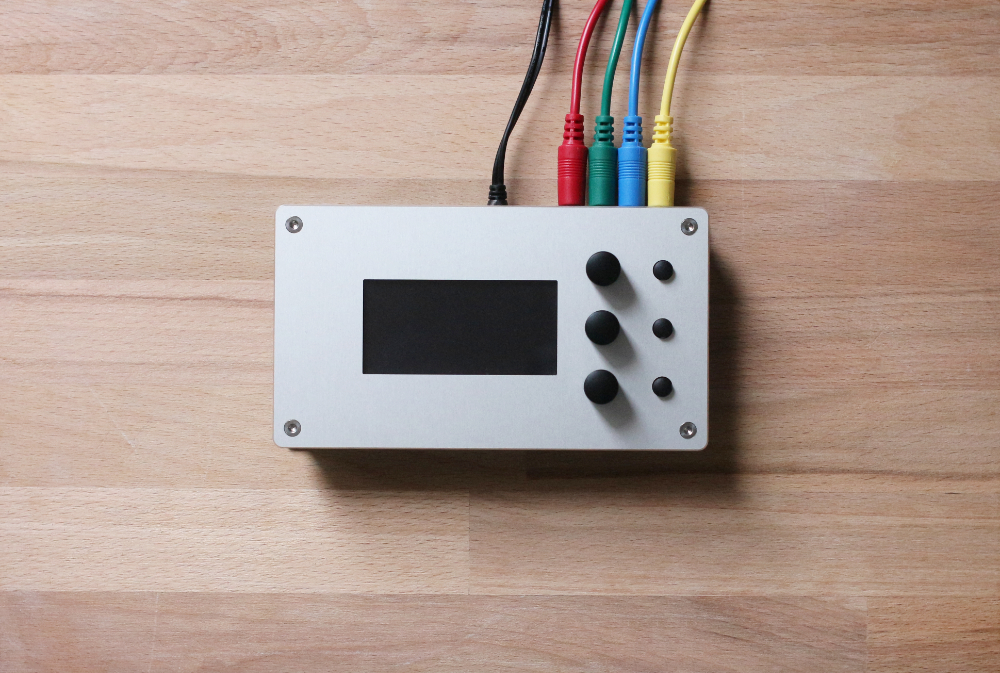

nordhat Nordhat Rev 2 / custom "DR" prototypes

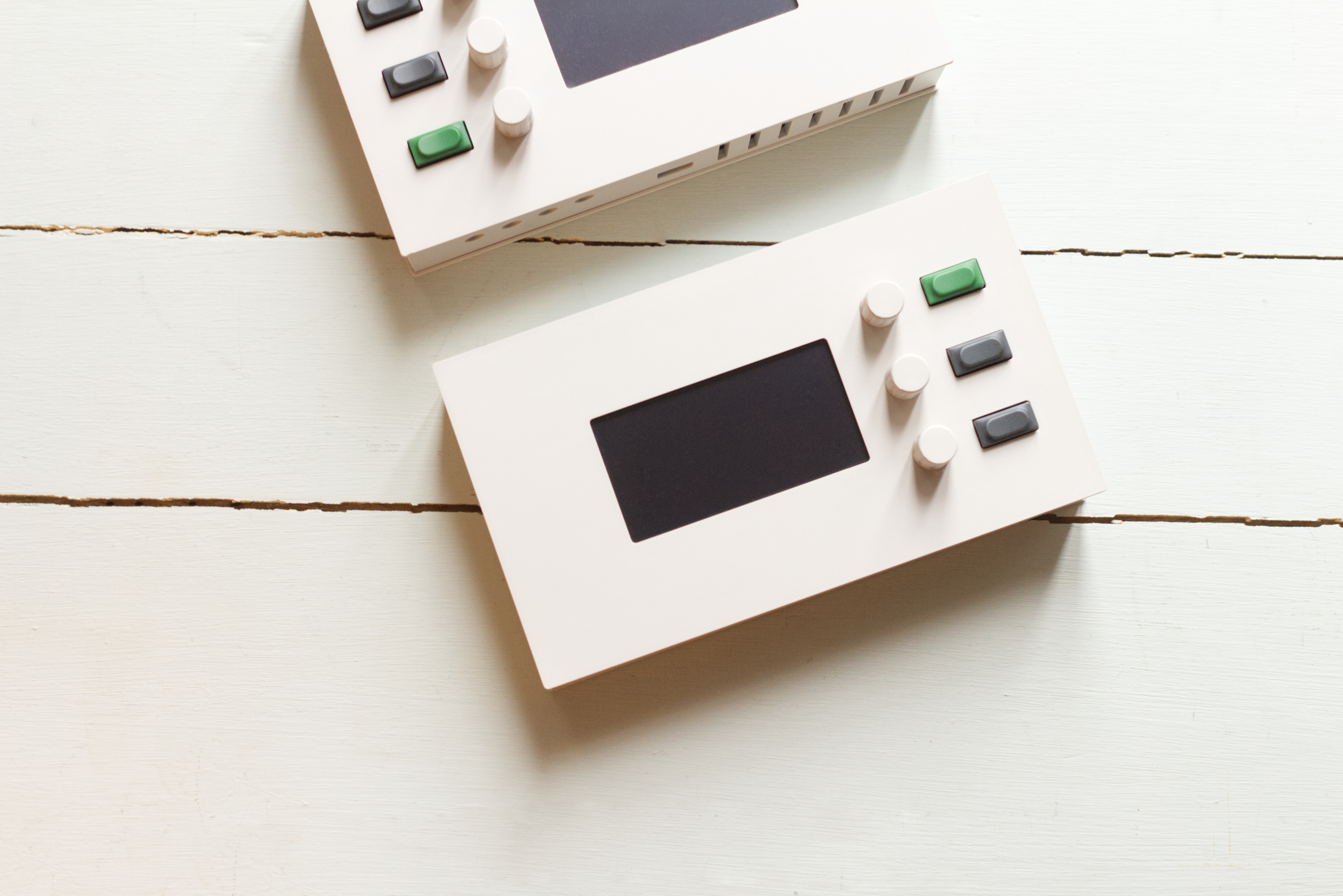

nordhat Nordhat rev 1 prototype

Please read the Notes

24/06/19: This board is probably NOT compatible with the new Raspberry Pi 4. The position of the Ethernet socket and USB sockets have changed in this latest revision of the PI and the Nordhat main PCB might not be adapted anymore.
