mangl

a 7 track granular sample player

undisclosed Imported automatically; the author has not disclosed AI use yet

install

In maiden's REPL (the >> prompt at the bottom of the editor), run:

;install https://github.com/notjustmat/mangl

Or add the splines catalog to maiden and install it from the project manager. Restart norns if the script ships a new engine.

readme from notjustmat/mangl

mangl v2.2

arc required.

based on angl by @tehn and the engine/script, glut by @artfwo

load samples via param menu.

mangl is a 7 track granular sample player.

  • arc ring 1 = speed

  • arc ring 2 = pitch

  • arc ring 3 = grain size

  • arc ring 4 = density

  • norns key1 = alt

  • norns key2 = enable/disable voice

  • norns enc1 = track volume

  • norns enc3 = nav

holding alt and turning a ring, or pressing a button, performs a secondary function.

  • alt + ring1 = scrub

  • alt + ring2 = fine tune

  • alt + ring3 = spread

  • alt + ring4 = jitter

  • alt + key2 = loop in/out

  • alt + key3 = loop clear

  • alt + enc1 = filter cutoff

  • alt + enc2 = delay send

nb: loop in/out is set in one button press. loop in on press, loop out on release.

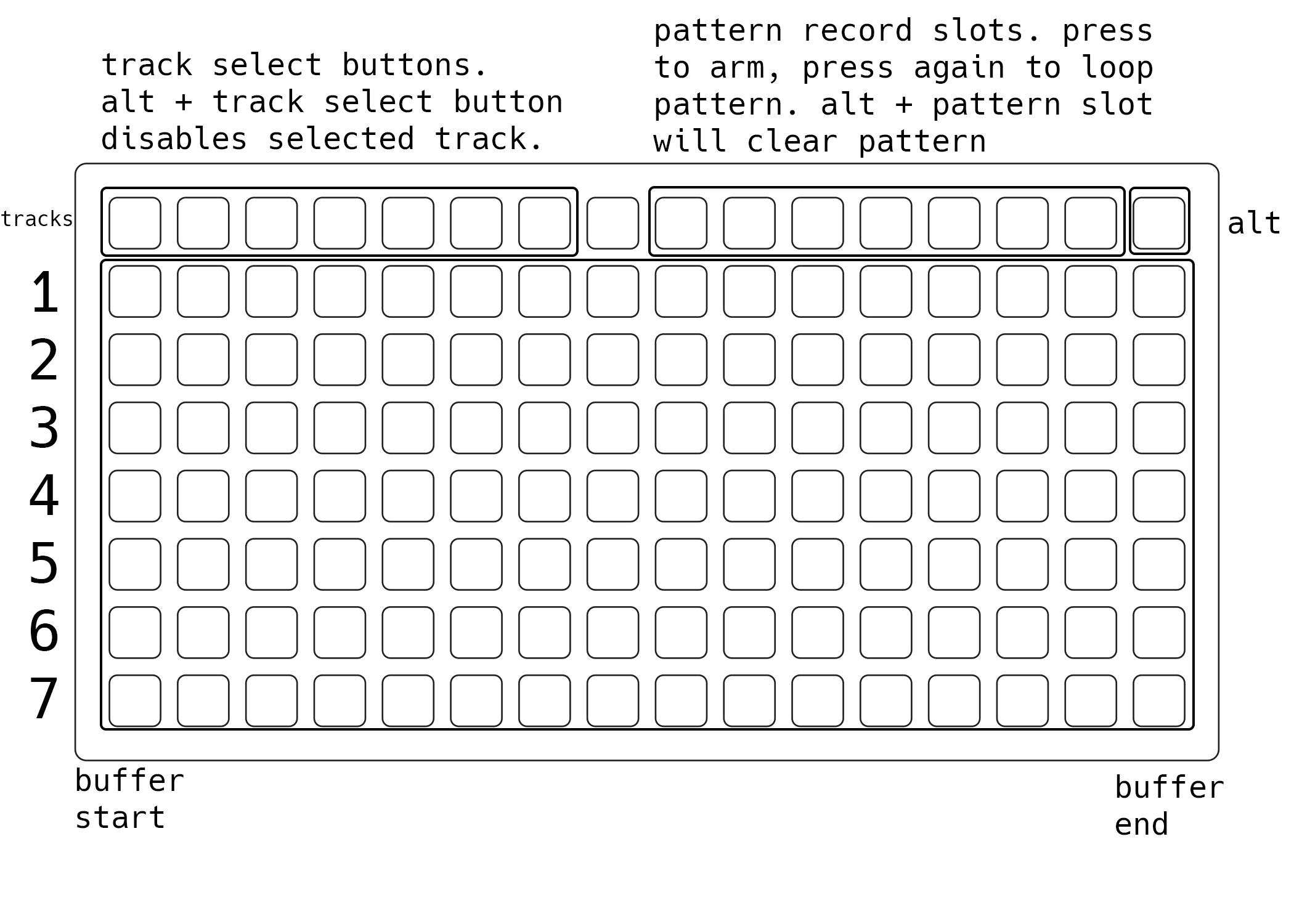

grid

@justmat

llllllll.co/t/21066

discussion
