kreislauf

v0.3.3

Beat sequencing rund um den Kreis inspired very heavily by Pocket Operators and the work of Ethan Hein.

Kreislauf UI

Requirements

Norns or Fates.

Install/Update

Kreislauf can be installed via Maiden's project manager.

Overview

Patterns

Each pattern consists of 4 concentric sequencer rings:

channel 1 - kick (outermost),
channel 2 - snare
channel 3 - closed hi-hat
channel 4 - open hi-hat (innermost).

Beat/Notes

When a beat is added to a ring, it fires off a Midi* note when active (60 by default) to the corresponding channel. While, this script is design with intent to create drum patterns; each beat can have its note value adjusted allowing for melody/harmony constructs as well. Go wild...

*I've blindly implemented crow, but I have no idea if it works. Any crow users please let me know what bugs you find and I'll adjust.

Chaining

I also like the way Pocket Operators accommodate for chaining of beats so I incorporated the ability for multiple patterns with individual loop counts to be strung together. For single pattern beats be sure to keep loop count as Inf. if you want endless looping. If multiple patterns are create, the entire sequence will always loop.

Saving and Loading Sequences

Patterns can be saved and later recalled (along with accompanying PSET). A number of demo patterns of some staple beats is installed within ~/dust/data/kreislauf/patterns. LOAD and SAVE patterns from the params menu.

Controls and Params

Controller	Page	Values	Description
E1	Global	1 – 3	Change page
K2	Global	Play/stop	Plays or stops sequence

Page 1

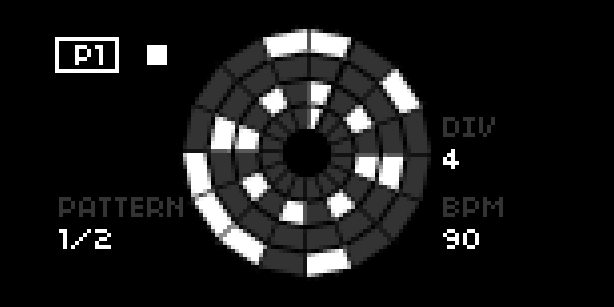

Kreislauf page 1 screenshot

Controller	Page	Values	Description
E2	P1	1 – x	Cycle through patterns
E3	P1	20 – 300	Set BPM
E3+K1 or E4	P1	1 – 16	Step divider
K3	P1		Add pattern
K3+K1	P1		Remove pattern

Page 2

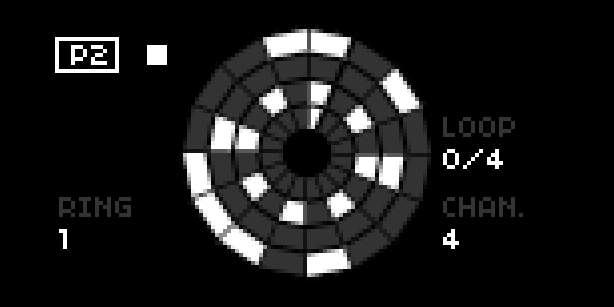

Kreislauf page 2 screenshot

Controller	Page	Values	Description
E2	P2	1 – 4	Cycle through rings
E3	P2	0 – 16	Set channel for active ring
E3+K1 or E4	P2	Inf, 1 – 32	Loop count for active pattern
K3	P2		Load pattern

Page 3

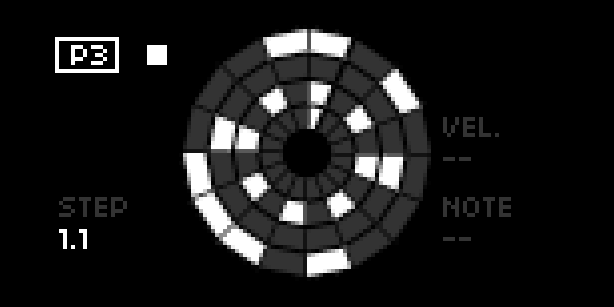

Kreislauf page 3 screenshot

Controller	Page	Values	Description
E2	P3	1 – 16	Cycle through steps
E3	P3	0 – 127	Set note value for active step
E3+K1 or E4	P3	0 – 127	Set velocity value for active step
K3	P3		Add beat/note to active step

Development

SSH into your Norns/Fates, then enter the following commands in terminal.

$ cd ~/dust/code
$ git clone https://github.com/frederickk/kreislauf.git

Changelog

v0.3.x
- Fixed/tidied UI
- Fixed Midi note off
v0.2.x
- Added sequencing of multiple patterns
v0.1.x Initial release
